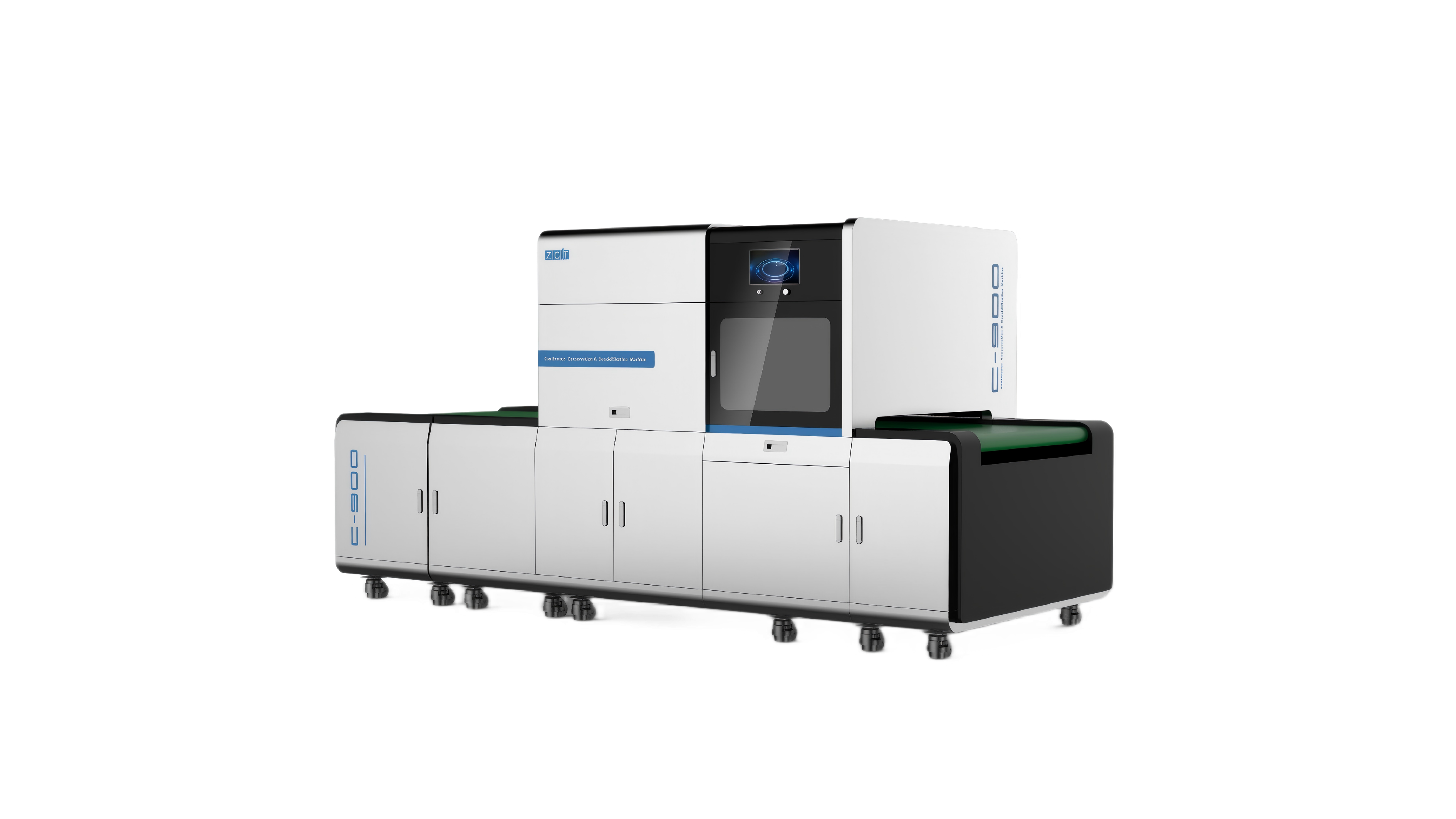

Engineered for high-efficiency batch deacidification and consolidation of single-sheet paper. The C-900 combines electrostatic spray, gentle mist delivery, and in-line drying & flattening — processing up to 3,000 A4 sheets per hour with fully automated PLC control.
Every subsystem is designed to protect fragile documents while maximizing throughput
The spray nozzle generates a soft, low-impact mist that minimizes external disturbance to paper — ideal for fragile and aged sheets.
Direct drying and flattening immediately after treatment keeps sheets flat and ready for collection and organization.
A 10-inch touchscreen PLC with stepper-motor drive gives precise control over spray speed and conveyor transmission.
Pump-pressure liquid supply with low-level alarm ensures uniform, stable deacidification and consolidation across every batch.
Height-limiting sensors at both chamber inlet and outlet, anti-curl paper sensors, and an efficient exhaust treatment system protect operators and documents.
Modular construction with drawer-style cleaning components makes the C-900 easy to disassemble, transport, and maintain.
Key technical data — full specification sheet available on request
| Equipment Model | C-900 |
|---|---|
| Max. Processing Capacity | 3,000 A4 sheets / hour |
| Conveyor Belt Width | 900 mm |
| Control Method | PLC + 10″ touchscreen |
| Liquid Supply | Storage tank + control valve, low-level alarm |
| Dimensions (L×H×W) | 3200 × 1500 × 1320 mm |
|---|---|
| Equipment Weight | 600 kg |
| Power Supply | AC 380V (Three-phase) |
| Rated Power | up to 5 kW |
| Drive System | Stepper motor drive |
Purpose-formulated water-based reagent for the C-900 — safe, stable and eco-friendly
A water-based system built on magnesium bicarbonate with cellulose consolidants — non-flammable and non-explosive, safe for operators and originals.
Supplied ready for the C-900 liquid system. Store sealed, protected from light, at 5–40°C. Shake well before use; avoid prolonged contact with metals.
Contact our team for the full specification sheet, pricing and delivery options
Get in Touch
